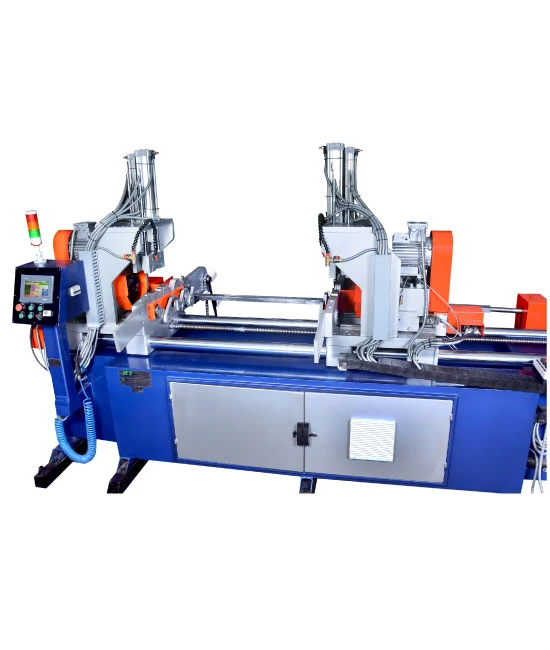

Je Dual Head Automatic Pipe Chamfering Machine ( Long Length - Servo Type )

Automatic Pipe Chamfering Machine (Long Length - Servo Type) – Precision for Extended Pipes

Name: Je Dual Head Automatic Pipe Chamfering Machine ( Long Length - Servo Type )
SKU: 5
Rating: 4.5 (50 reviews)

The JE Dual Head Automatic Pipe Chamfering Machine (Long Length - Servo Type) is engineered for precise and efficient chamfering of long-length pipes.

Equipped with dual-head operation and servo-controlled technology, this machine delivers simultaneous, accurate chamfers on both ends, significantly increasing productivity.

Its robust build, advanced functionality, and user-friendly interface make it ideal for handling a wide range of pipe materials and lengths.

Designed for industrial applications, the JE Dual Head Chamfering Machine ensures exceptional performance, reliability, and precision, making it the ultimate solution for high-quality pipe preparation tasks.

Product Specification

Main Motor: 3.0 hp (2800 rpm) x 2 Nos.
Operations: OD (Outer Diameter), ID (Inner Diameter), and Facing, performed simultaneously or in combination as required.
Operating Source:
- Cutter Travel: Servo
- Clamping: Pneumatic
Operating Size:
- Minimum: OD 8 mm
- Maximum: OD 70 mm
Operating Length:
- Minimum: 145 mm
- Maximum:
  - Model 1: 600 mm
  - Model 2: 1000 mm
  - Model 3: 2000 mm
Accuracy:
- Length = ±0.1 mm
- Chamfering = ±0.1 mm
Weight: 1.8 - 2.3 Ton

Note: Different chamfering degree cartridges are available as per requirement.

Description

The Fully Automatic Dual-End Servo Control Chamfering Machine with Stacker is designed for high-precision chamfering and facing of pipes. It performs OD, ID, and Facing operations on both ends of the pipe simultaneously.

Key Features:

Customizable Operations:
- Any combination of OD, ID, and Facing can be selected.
- Chamfer angles and depths are adjustable with interchangeable cartridges.
Programmable Flexibility:
- Supports up to 1000 programs stored in the machine's PLC.
- Job changes are quick and seamless using a touchscreen menu.
Efficiency:
- Reduces setup time by 50% compared to conventional hydraulic machines.
- Maintains accuracy consistency within 20 microns from one batch to another.
Accuracy:
- Cutting and chamfering maintain tight tolerances of ±0.1 mm.
Ease of Use:
- Fully automated pipe feeding, chamfering, and parameter adjustments via the PLC interface.
